Fast optimization of instantaneous quantum polynomial circuits¶

Parameterized IQP circuits¶

IQPopt is designed to optimize a class of IQP circuits called parameterized IQP circuits. These are comprised of gates $\text{exp}(i\theta_j X_j)$, where the generator $X_j$ is a tensor product of Pauli X operators acting on some subset of qubits and $\theta_j$ is a trainable parameter. We will represent the parameterized gates by a list

that specifies the generators of the gates (each generator with an independent trainable parameter). Each element of gates is associated with a different parameter, and is a list of lists of integers that specifies the generator for that parameter. For example,

specifies that the generator of the first gate is $X\otimes X$ acting on the first two qubits of the circuit, i.e. wires 0 and 1. We can also define generators that are sums of tensor products of Pauli X operators by including more elements. For example,

would correspond to a gate with a single parameter with generator $X\otimes X$ + $X\otimes I$.

Here we will work with the following set of gates

gates = [[[0]], [[1]], [[2]], [[0,1]], [[0,2]], [[1,2]]]

i.e. one and two body generators acting on three qubits, each with an independent parameter.

Expectation values¶

IQPopt can be applied to problems that involve measuring expectation values of tensor products of Pauli Z observables of parameterized IQP circuits.

We will represent these observables with binary lists, where a nonzero element denotes the presence of a Pauli Z operator on that qubit. For example, in a three-qubit circuit, the operator

will be represented as

Let’s now put this into practice and build a PennyLane circuit out of a gates list.

Creating an IQP circuit with PennyLane¶

To build a parameterized IQP circuit in PennyLane, we can use the MultiRZ function, making use of the identity

where $H$ is the Hadamard matrix and $Z_j$ is the operator obtained by replacing the Pauli X operators by Pauli Z operators in $X_j$. Our PennyLane circuit (with input state $\vert 0 \rangle$) is therefore the following.

import pennylane as qml
import numpy as np

def penn_iqp_gates(params: np.ndarray, gates: list, n_qubits: int):
    """IQP circuit in PennyLane form.

    Args:
        params (np.ndarray): The parameters of the IQP gates.
        gates (list): The gates representation of the IQP circuit.
        n_qubits (int): The total number of qubits in the circuit.
    """

    for i in range(n_qubits):
        qml.Hadamard(i)

    for par, gate in zip(params, gates):
        for gen in gate:
            qml.MultiRZ(2*par, wires=gen)

    for i in range(n_qubits):
        qml.Hadamard(i)

Now we have our circuit, we can evaluate expectation values of tensor products of Pauli Z operators specified by lists of the form op above.

def penn_obs(op: np.ndarray) -> qml.operation.Observable:
    """Returns a PennyLane observable from a bitstring representation.

    Args:
        op (np.ndarray): Bitstring representation of the Z operator.

    Returns:
        qml.Observable: PennyLane observable.
    """
    for i, z in enumerate(op):
        if i==0:
            if z:
                obs = qml.Z(i)
            else:
                obs = qml.I(i)
        else:
            if z:
                obs @= qml.Z(i)
    return obs

def penn_iqp_circuit(params: np.ndarray, gates: list, op: np.ndarray, n_qubits: int) -> qml.measurements.ExpectationMP:
    """Defines the circuit that calculates the expectation value of the operator with the IQP circuit with PennyLane tools.

    Args:
        params (np.ndarray): The parameters of the IQP gates.
        gates (list): The gates representation of the IQP circuit.
        op (np.ndarray): Bitstring representation of the Z operator.
        n_qubits (int): The total number of qubits in the circuit.

    Returns:
        qml.measurements.ExpectationMP: PennyLane circuit with an expectation value.
    """
    penn_iqp_gates(params, gates, n_qubits)
    obs = penn_obs(op)
    return qml.expval(obs)

def penn_iqp_op_expval(params: np.ndarray, gates: list, op: np.ndarray, n_qubits: int) -> float:
    """Calculates the expectation value of the operator with the IQP circuit with PennyLane tools.

    Args:
        params (np.ndarray): The parameters of the IQP gates.
        gates (list): The gates representation of the IQP circuit.
        op (np.ndarray): Bitstring representation of the Z operator.
        n_qubits (int): The total number of qubits in the circuit.

    Returns:
        float: Expectation value.
    """
    dev = qml.device("lightning.qubit", wires=n_qubits)
    penn_iqp_circuit_exe = qml.QNode(penn_iqp_circuit, dev)
    return penn_iqp_circuit_exe(params, gates, op, n_qubits)

With this, we can now calculate all expectation values of Pauli Z tensors of any parameterized IQP circuit we can think of. Let’s see an example using our gates list from above.

n_qubits = 3
op = np.array([1,0,1]) # operator ZIZ
params = np.random.rand(len(gates)) # random parameters for all the gates (remember we have 5 gates with 6 generators in total)

penn_op_expval = penn_iqp_op_expval(params, gates, op, n_qubits)
print("Expectation value: ", penn_op_expval)

Expectation value:  0.10014859230263684

Estimating expectation values with IQPopt¶

IQPopt can perform the same operations our PennyLane circuit above, although using approximations instead of exact values. The benefit is that we can work with very large circuits.

Starting from a paper on simulating quantum computers with probabilistic methods 3 from Van den Nest (Theorem 3), one can arrive at the following expression for expectation values of Pauli Z operators

where:

• $\boldsymbol{a}$ is the bitstring representation of the operator whose expectation value we want to compute.

• $\boldsymbol{z}$ represents bitstring samples drawn from the uniform distribution $U$.

• $\theta_{j}$ are the trainable parameters.

• $\boldsymbol{g}_{j}$ are the different generators, also represented as bitstrings.

Although this expression is exact, computing the expectation exactly requires an infinite number of samples $\boldsymbol{z}$. Instead, we can replace the expectation with an empirical mean and compute an unbiased estimate of $\langle Z_{\boldsymbol{a}} \rangle$ efficiently. That is, if we sample a batch of $s$ bitstrings $\{\boldsymbol{z}_i\}$ from the uniform distribution and compute the sample mean

we obtain an unbiased estimate $\hat{\langle Z_{\boldsymbol{a}}\rangle}$ of $\langle Z_{\boldsymbol{a}}\rangle$, meaning that

The error of this approximation is well known since, by the central limit theorem, the standard deviation of the sample mean of a bounded random variable decreases as

where $s$ is the number of samples.

Let’s see now how to use the IQPopt package to calculate expectation values, based on the same arguments in the previous example. First, we create the circuit object with IqpSimulator, which takes in the number of qubits n_qubits and the gates in our usual format:

import iqpopt as iqp

small_circuit = iqp.IqpSimulator(n_qubits, gates)

To obtain estimates of expectation values we use the class method IqpSimulator.op_expval(). This function requires a parameter array params, a PauliZ operator specified by its binary representation op, a new parameter n_samples (the number of samples $s$) that controls the precision of the approximation (the more the better), and a JAX pseudo random number generator key to seed the randomness of the sampling. It returns the expectation value estimate as well as its standard error.

Using the same params and op as before:

import jax

n_samples = 2000
key = jax.random.PRNGKey(66)

expval, std = small_circuit.op_expval(params, op, n_samples, key)

print("Expectation value:  ", expval)
print("Standard error: ", std)

Expectation value:   [0.11197041]
Standard error:  [0.00944786]

Since the calculation in IQPopt is stochastic, the result is not exactly the same as the one obtained with PennyLane. However, as we can see, they are within the standard error std. You can try increasing n_samples in order to obtain a more accurate approximation.

Additionally, this function supports fast batch evaluation of expectation values. By specifying a batch of operators ops as an array, we can compute expectation values and errors in parallel using the same syntax.

ops = np.array([[1,0,0],[0,1,0],[0,0,1]]) # batch of single qubit Pauli Zs

expvals, stds = small_circuit.op_expval(params, ops, n_samples, key)

print("Expectation values: ", expvals)
print("Standard errors: ", stds)

Expectation values:  [ 0.01614009  0.07369209 -0.07287221]
Standard errors:  [0.01095266 0.02054404 0.02038749]

With PennyLane, surpassing 30 qubits would be extremely time-consuming. However, with IQPopt, we can scale far beyond that with ease.

n_qubits = 1000
n_gates = 1000

gates = []
for _ in range(n_gates):
    # First we create a generator with bodyness 2
    gen = list(np.random.choice(n_qubits, 2, replace=False))
    # Each gen will have its independent trainable parameter, so we can directly build the gate
    gates.append([gen])

large_circuit = iqp.IqpSimulator(n_qubits, gates)

params = np.random.rand(len(gates))
op = np.random.randint(0, 2, n_qubits)
n_samples = 1000
key = jax.random.PRNGKey(42)

expval, std = large_circuit.op_expval(params, op, n_samples, key)

print("Expectation value: ", expval)
print("Standard error: ", std)

Expectation value:  [0.00308657]
Standard error:  [0.0220376]

Sampling and probabilities¶

If we measure the output qubits of an IQP circuit, we generate samples of binary vectors according to the distribution

where $U(\boldsymbol{\theta})$ is the parametrized IQP circuit. For a low number of qubits, we can use PennyLane to obtain the output probabilities of the circuit as well as sample from it. Note that there is not an efficient algorithm to do this for large numbers of qubits, so PennyLane returns an error in this case.

These functions are already implemented in the IqpSimulator object. The .probs() method works as it does in PennyLane, where the returned array of probabilities is in lexicographic order.

sample = small_circuit.sample(params, shots=1)
print("Sample: ", sample)
#
probabilities = small_circuit.probs(params)
print("Probabilities: ", probabilities)

try:
    sample = large_circuit.sample(params, shots=1)
    print(sample) # large circuit will return error
except Exception as e:
    print(e)

try:
    probabilities = large_circuit.probs(params)
    print(probabilities) # large circuit will return error
except Exception as e:
    print(e)

Sample:  [0 1 1]
Probabilities:  [0.2192558  0.05579552 0.17840054 0.14835178 0.05793099 0.07262192
 0.04655907 0.22108438]
std::bad_alloc
std::bad_alloc

As we can see, we can’t sample or know the probabilities of the circuit for the large one. The only efficient approximation algorithm we have is for the calculation of expectation values. Let’s see how time scales for each of the methods using a logarithmic plot.

import time
import matplotlib.pyplot as plt

range_qubits = range(15, 26)
n_gates = 10
n_samples = 1000

times_op, times_sample, times_probs = [], [], []
for n_qubits in range_qubits:

    gates = []
    for _ in range(n_gates):
        gen = list(np.random.choice(n_qubits, 2, replace=False))
        gates.append([gen])

    circuit = iqp.IqpSimulator(n_qubits, gates)
    params_init = np.random.uniform(0, 2*np.pi, len(gates))
    key = jax.random.PRNGKey(np.random.randint(0, 99999))
    op = np.random.randint(0, 2, n_qubits)

    # Timing op_expval
    start = time.perf_counter()
    circuit.op_expval(params_init, op, n_samples, key)
    times_op.append(time.perf_counter() - start)

    # Timing sample
    start = time.perf_counter()
    circuit.sample(params_init, shots=1)
    times_sample.append(time.perf_counter() - start)

    # Timing probs
    start = time.perf_counter()
    circuit.probs(params_init)
    times_probs.append(time.perf_counter() - start)

plt.scatter(range_qubits[1:], times_op[1:], label="op_expval")
plt.scatter(range_qubits[1:], times_sample[1:], label="sample")
plt.scatter(range_qubits[1:], times_probs[1:], label="probs")

plt.xlabel("n_qubits")
plt.ylabel("Time [s]")
plt.yscale("log")
plt.title(f"Time vs n_qubits")
plt.legend()
plt.show()

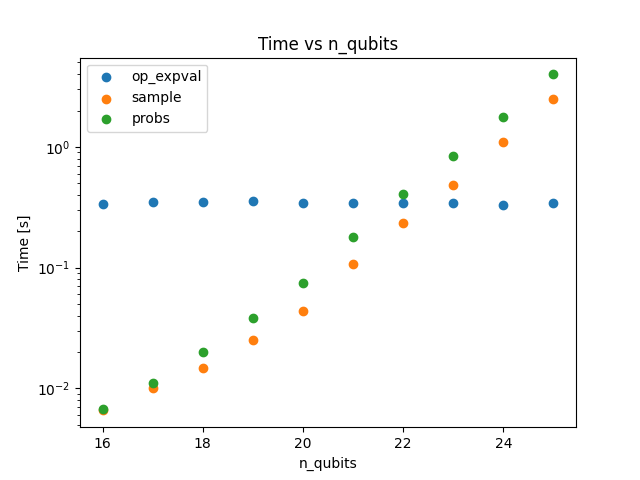

In the previous figure, you can see that the time to sample or compute probabilities scales exponentially, however expectation values are very efficient (the scaling can be shown to be linear).

Optimizing an IQPopt circuit¶

Circuits can be optimized via a separate Trainer class. To instantiate a trainer object, we first define a loss function (also called an objective function), an optimizer, and an initial stepsize for the gradient descent. Continuing our small_circuit example from before, below we define a simple loss function that is a sum of expectation values returned by op_expval() .

import jax.numpy as jnp

def loss_fn(params, circuit, ops, n_samples, key):
    expvals = circuit.op_expval(params, ops, n_samples, key)[0]
    return jnp.sum(expvals)

optimizer = "Adam"
stepsize = 0.001

trainer = iqp.Trainer(optimizer, loss_fn, stepsize)

Any differentiable loss function expressible in JAX can be defined, but must have a first argument params that corresponds to the optimization parameters of the circuit. To minimize the loss function, we call the method train() , which requires the number of iterations n_iters and the initial arguments of the loss function loss_kwargs given as a dictionary object. This dictionary must contain a key params whose corresponding value specifies the initial parameters.

np.random.seed(0)

n_iters = 1000
params_init = np.random.normal(0, 1, len(small_circuit.gates))
n_samples = 100

loss_kwargs = {
    "params": params_init,
    "circuit": small_circuit,
    "ops": ops,
    "n_samples": n_samples,
    "key": key
}

trainer.train(n_iters, loss_kwargs, turbo=100) # the turbo option trains in iteration batches of the number that you input, using jit and lax.scan

trained_params = trainer.final_params

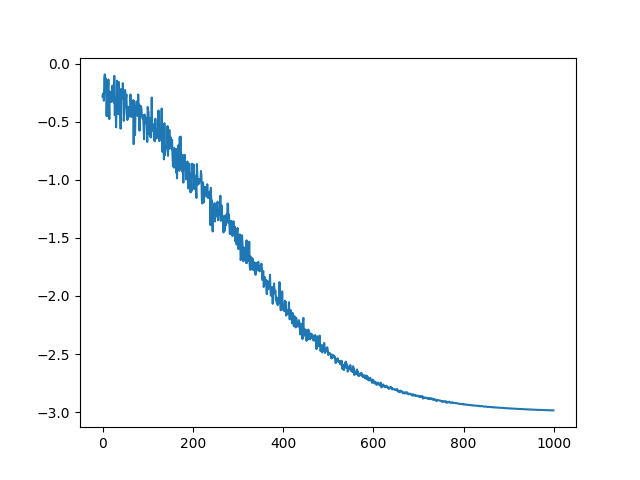

plt.plot(trainer.losses) # plot the loss curve
plt.show()

Training Progress:   0%|          | 0/1000 [00:00<?, ?it/s, elapsed time=0, loss=0, total time=0]
Training Progress:   0%|          | 0/1000 [00:00<?, ?it/s, loss=-0.546946, elapsed time=0.44, total time=0.87]
Training Progress:  10%|█         | 100/1000 [00:00<00:03, 227.11it/s, loss=-0.546946, elapsed time=0.44, total time=0.87]
Training Progress:  10%|█         | 100/1000 [00:00<00:03, 227.11it/s, loss=-1.000135, elapsed time=0.01, total time=0.89]
Training Progress:  20%|██        | 200/1000 [00:00<00:03, 227.11it/s, loss=-1.503479, elapsed time=0.01, total time=0.9]
Training Progress:  30%|███       | 300/1000 [00:00<00:03, 227.11it/s, loss=-2.068994, elapsed time=0.01, total time=0.91]
Training Progress:  40%|████      | 400/1000 [00:00<00:02, 227.11it/s, loss=-2.473316, elapsed time=0.01, total time=0.92]
Training Progress:  50%|█████     | 500/1000 [00:00<00:02, 227.11it/s, loss=-2.726246, elapsed time=0.01, total time=0.93]
Training Progress:  60%|██████    | 600/1000 [00:00<00:01, 227.11it/s, loss=-2.859115, elapsed time=0.01, total time=0.95]
Training Progress:  70%|███████   | 700/1000 [00:00<00:01, 227.11it/s, loss=-2.930583, elapsed time=0.01, total time=0.96]
Training Progress:  80%|████████  | 800/1000 [00:00<00:00, 227.11it/s, loss=-2.966595, elapsed time=0.01, total time=0.97]
Training Progress:  90%|█████████ | 900/1000 [00:00<00:00, 227.11it/s, loss=-2.984562, elapsed time=0.01, total time=0.98]
Training Progress: 100%|██████████| 1000/1000 [00:00<00:00, 2344.17it/s, loss=-2.984562, elapsed time=0.01, total time=0.98]
Training Progress: 100%|██████████| 1000/1000 [00:00<00:00, 1831.35it/s, loss=-2.984562, elapsed time=0.01, total time=0.98]
Training has not converged after 1000 steps

This training process finds its global minimum at loss = -3.0, which is the minimum possible with the defined loss function.

Generative machine learning tools¶

The package contains a dedicated module gen_qml with functionality to train and evaluate generative models expressed as IqpSimulator circuits. Note that, since sampling from IQP circuits is hard, these circuits may lead to advantages for generative machine learning tasks relative to classical models!

Training via the maximum mean discrepancy loss¶

The Maximum Mean Discrepancy (MMD) 4 is an integral probability metric that measures the similarity between two probability distributions and can serve as a loss function to train generative models. We will focus on the square of the MMD, which can be written as

$$ \text{MMD}^2(\boldsymbol{\theta}) = \mathbb{E}_{\boldsymbol{x},\boldsymbol{y}\sim q_{\boldsymbol{\theta}} }[k(\boldsymbol{x},\boldsymbol{y})] - 2 \mathbb{E}_{\boldsymbol{x} \sim q_{\boldsymbol{\theta}},\boldsymbol{y}\sim p }[k(\boldsymbol{x},\boldsymbol{y})] + \mathbb{E}_{\boldsymbol{x},\boldsymbol{y}\sim p }[k(\boldsymbol{x},\boldsymbol{y})] \,, $$

Using a Gaussian kernel,

$$ k(\boldsymbol{x},\boldsymbol{y}) = \exp\Big(\frac{\vert\vert \boldsymbol{x}-\boldsymbol{y} \vert\vert^2}{2\sigma^2}\Big) \,, $$

it has one parameter called sigma, the bandwidth of this kernel. The squared MMD is typically calculated using samples from both probability distributions, and we have an implementation available for this in the gen_qml module.

import iqpopt.gen_qml as genq
from iqpopt.gen_qml.utils import median_heuristic

n_bits = 100
# toy datasets of low weight bitstrings
X1 = np.random.binomial(1, 0.05, size=(100, n_bits))
X2 = np.random.binomial(1, 0.07, size=(100, n_bits))

sigma = median_heuristic(X1) # bandwidth for MMD

mmd = genq.mmd_loss_samples(X1, X2, sigma)
print(mmd)

0.0054079845829355655

This metric can also be estimated efficiently with expectation values of Pauli Z operators only 2. This means that if we have an IqpSimulator object, we can also estimate the MMD loss.

The implementation in the gen_qml module only needs an additional parameter, n_ops, that controls the accuracy of this value. For each of these n_ops, an expectation value will be calculated with n_samples. The higher the number of operators and samples, the better the precision.

Let’s see it in an example with 20 qubits:

n_qubits = 20

# toy dataset of low weight bitstrings (from ground truth p)
ground_truth = np.random.binomial(1, 0.2, size=(100, n_qubits))

gates = iqp.utils.local_gates(n_qubits, 3)  # all gates with Pauli weight <= 3
circuit = iqp.IqpSimulator(n_qubits, gates)

params = np.random.normal(0, 0.1, len(gates))
sigma = median_heuristic(ground_truth)/3 # bandwidth for MMD

print("Sigma:", sigma)

mmd = genq.mmd_loss_iqp(params,
                       circuit,
                       ground_truth,
                       sigma,
                       n_ops=1000,
                       n_samples=1000,
                       key=jax.random.PRNGKey(42))
print("MMD: ", mmd)

Sigma: 0.8819171036881969
MMD:  0.025542132928097996

Now, similar to what we did a few sections back in Optimizing a circuit, this function can be used with a Trainer object to train a quantum generative model given as a parameterized IQP circuit.

Using the last defined 20 qubits circuit:

X_train = np.random.binomial(1, 0.2, size=(1000, n_qubits))
params_init = np.random.normal(0, 0.1, len(gates))
loss = genq.mmd_loss_iqp # MMD loss

loss_kwargs = {
    "params": params_init,
    "iqp_circuit": circuit,
    "ground_truth": X_train, # samples from ground truth distribution
    "sigma": sigma,
    "n_ops": 1000,
    "n_samples": 1000,
    "key": jax.random.PRNGKey(42),
}

trainer = iqp.Trainer("Adam", loss, stepsize=0.01)
trainer.train(n_iters=200, loss_kwargs=loss_kwargs, turbo=10)

trained_params = trainer.final_params

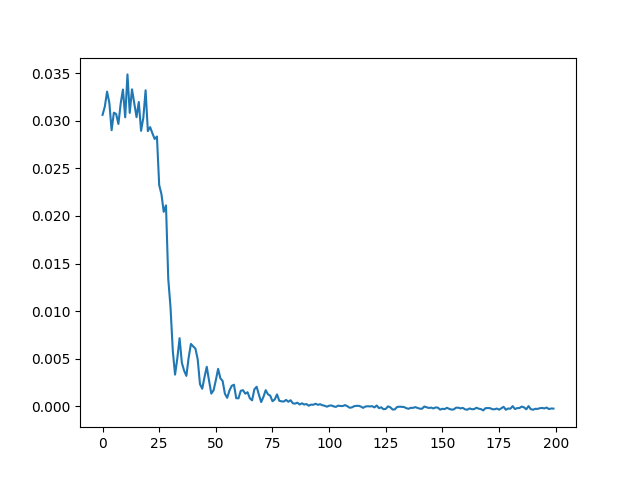

plt.plot(trainer.losses)
plt.show()

Training Progress:   0%|          | 0/200 [00:00<?, ?it/s, elapsed time=0, loss=0, total time=0]
Training Progress:   0%|          | 0/200 [00:02<?, ?it/s, loss=0.031328, elapsed time=2.42, total time=2.82]
Training Progress:   5%|▌         | 10/200 [00:02<00:45,  4.14it/s, loss=0.031328, elapsed time=2.42, total time=2.82]
Training Progress:   5%|▌         | 10/200 [00:03<00:45,  4.14it/s, loss=0.030239, elapsed time=1.42, total time=4.24]
Training Progress:  10%|█         | 20/200 [00:03<00:32,  5.47it/s, loss=0.030239, elapsed time=1.42, total time=4.24]
Training Progress:  10%|█         | 20/200 [00:05<00:32,  5.47it/s, loss=0.008336, elapsed time=1.39, total time=5.63]
Training Progress:  15%|█▌        | 30/200 [00:05<00:27,  6.14it/s, loss=0.008336, elapsed time=1.39, total time=5.63]
Training Progress:  15%|█▌        | 30/200 [00:06<00:27,  6.14it/s, loss=0.001781, elapsed time=1.38, total time=7.02]
Training Progress:  20%|██        | 40/200 [00:06<00:24,  6.53it/s, loss=0.001781, elapsed time=1.38, total time=7.02]
Training Progress:  20%|██        | 40/200 [00:07<00:24,  6.53it/s, loss=0.002704, elapsed time=1.37, total time=8.39]
Training Progress:  25%|██▌       | 50/200 [00:07<00:22,  6.78it/s, loss=0.002704, elapsed time=1.37, total time=8.39]
Training Progress:  25%|██▌       | 50/200 [00:09<00:22,  6.78it/s, loss=0.001127, elapsed time=1.37, total time=9.76]
Training Progress:  30%|███       | 60/200 [00:09<00:20,  6.94it/s, loss=0.001127, elapsed time=1.37, total time=9.76]
Training Progress:  30%|███       | 60/200 [00:10<00:20,  6.94it/s, loss=0.000521, elapsed time=1.37, total time=11.1]
Training Progress:  35%|███▌      | 70/200 [00:10<00:18,  7.05it/s, loss=0.000521, elapsed time=1.37, total time=11.1]
Training Progress:  35%|███▌      | 70/200 [00:12<00:18,  7.05it/s, loss=0.000339, elapsed time=1.36, total time=12.5]
Training Progress:  40%|████      | 80/200 [00:12<00:16,  7.15it/s, loss=0.000339, elapsed time=1.36, total time=12.5]
Training Progress:  40%|████      | 80/200 [00:13<00:16,  7.15it/s, loss=0.000005, elapsed time=1.39, total time=13.9]
Training Progress:  45%|████▌     | 90/200 [00:13<00:15,  7.17it/s, loss=0.000005, elapsed time=1.39, total time=13.9]
Training Progress:  45%|████▌     | 90/200 [00:14<00:15,  7.17it/s, loss=0.000029, elapsed time=1.38, total time=15.3]
Training Progress:  50%|█████     | 100/200 [00:14<00:13,  7.20it/s, loss=0.000029, elapsed time=1.38, total time=15.3]
Training Progress:  50%|█████     | 100/200 [00:16<00:13,  7.20it/s, loss=-0.000103, elapsed time=1.4, total time=16.7]
Training Progress:  55%|█████▌    | 110/200 [00:16<00:12,  7.18it/s, loss=-0.000103, elapsed time=1.4, total time=16.7]
Training Progress:  55%|█████▌    | 110/200 [00:17<00:12,  7.18it/s, loss=-0.000115, elapsed time=1.39, total time=18]
Training Progress:  60%|██████    | 120/200 [00:17<00:11,  7.19it/s, loss=-0.000115, elapsed time=1.39, total time=18]
Training Progress:  60%|██████    | 120/200 [00:19<00:11,  7.19it/s, loss=-0.000331, elapsed time=1.38, total time=19.4]
Training Progress:  65%|██████▌   | 130/200 [00:19<00:09,  7.21it/s, loss=-0.000331, elapsed time=1.38, total time=19.4]
Training Progress:  65%|██████▌   | 130/200 [00:20<00:09,  7.21it/s, loss=0.000088, elapsed time=1.38, total time=20.8]
Training Progress:  70%|███████   | 140/200 [00:20<00:08,  7.22it/s, loss=0.000088, elapsed time=1.38, total time=20.8]
Training Progress:  70%|███████   | 140/200 [00:21<00:08,  7.22it/s, loss=-0.000188, elapsed time=1.39, total time=22.2]
Training Progress:  75%|███████▌  | 150/200 [00:21<00:06,  7.21it/s, loss=-0.000188, elapsed time=1.39, total time=22.2]
Training Progress:  75%|███████▌  | 150/200 [00:23<00:06,  7.21it/s, loss=-0.000409, elapsed time=1.37, total time=23.6]
Training Progress:  80%|████████  | 160/200 [00:23<00:05,  7.23it/s, loss=-0.000409, elapsed time=1.37, total time=23.6]
Training Progress:  80%|████████  | 160/200 [00:24<00:05,  7.23it/s, loss=-0.000210, elapsed time=1.38, total time=24.9]
Training Progress:  85%|████████▌ | 170/200 [00:24<00:04,  7.23it/s, loss=-0.000210, elapsed time=1.38, total time=24.9]
Training Progress:  85%|████████▌ | 170/200 [00:25<00:04,  7.23it/s, loss=-0.000283, elapsed time=1.37, total time=26.3]
Training Progress:  90%|█████████ | 180/200 [00:25<00:02,  7.25it/s, loss=-0.000283, elapsed time=1.37, total time=26.3]
Training Progress:  90%|█████████ | 180/200 [00:27<00:02,  7.25it/s, loss=-0.000239, elapsed time=1.38, total time=27.7]
Training Progress:  95%|█████████▌| 190/200 [00:27<00:01,  7.24it/s, loss=-0.000239, elapsed time=1.38, total time=27.7]
Training Progress:  95%|█████████▌| 190/200 [00:28<00:01,  7.24it/s, loss=-0.000463, elapsed time=1.4, total time=29.1]
Training Progress: 100%|██████████| 200/200 [00:28<00:00,  7.21it/s, loss=-0.000463, elapsed time=1.4, total time=29.1]
Training Progress: 100%|██████████| 200/200 [00:28<00:00,  6.97it/s, loss=-0.000463, elapsed time=1.4, total time=29.1]
Training has not converged after 200 steps

We can now try to see how well this generative IQP circuit resembles the ground truth. Since we are not working with a large number of qubits, we can sample from the circuit with the PennyLane machinery. We can then compare our trained and untrained samples with the ground truth through a histogram of the bitstring weights and evaluate the distributions.

samples_untrained = circuit.sample(params_init, 1000)
samples_trained = circuit.sample(trainer.final_params, 1000)

plt.hist(np.sum(samples_untrained, axis=1), bins=20, range=[0,20], alpha=0.5, label = 'untrained circuit')
plt.hist(np.sum(samples_trained, axis=1), bins=20, range=[0,20], alpha=0.5, label = 'trained circuit')
plt.hist(np.sum(X_train, axis=1), bins=20, range=[0,20], alpha=0.5, label = 'ground truth')
plt.xlabel('bitstring weight')
plt.ylabel('count')
plt.legend()
plt.show()

As we can see the trained circuit closely resembles the ground truth distribution. Although we won’t cover it in this demo, the package also contains tools to evaluate generative models and investigate model dropping via the Kernel Generalized Empirical Likelihood 5.

Conclusion¶

As a final takeaway, IQPopt stands out as perhaps the only tool that enables researchers to analyze large-scale circuits with potential advantages using numerical methods. By doing so, it opens up opportunities to explore systems that are too intricate for traditional pen-and-paper calculations and, as a result, it has the potential to uncover insights that were previously inaccessible.

References¶

1

Simon C. Marshall, Scott Aaronson, Vedran Dunjko “Improved separation between quantum and classical computers for sampling and functional tasks” arXiv:410.20935, 2024.

2(1,2)

Erik Recio, Joseph Bowles. “IQPopt: Fast optimization of instantaneous quantum polynomial circuits in JAX”. arXiv:2501.04776, 2025.

3

M. Van den Nest. “Simulating quantum computers with probabilistic methods” arXiv:0911.1624, 2010.

4

Arthur Gretton, Karsten M. Borgwardt, Malte J. Rasch, Bernhard Schölkopf, Alexander Smola. “A Kernel Two-Sample Test” http://jmlr.org/papers/v13/gretton12a.html, in Journal of Machine Learning Research 13.25, pp. 723-773, 2012.

5

Suman Ravuri, Mélanie Rey, Shakir Mohamed, Marc Peter Deisenroth. “Understanding Deep Generative Models with Generalized Empirical Likelihoods” arXiv:2306.09780, 2023.

About the authors¶

Total running time of the script: (0 minutes 55.183 seconds)
